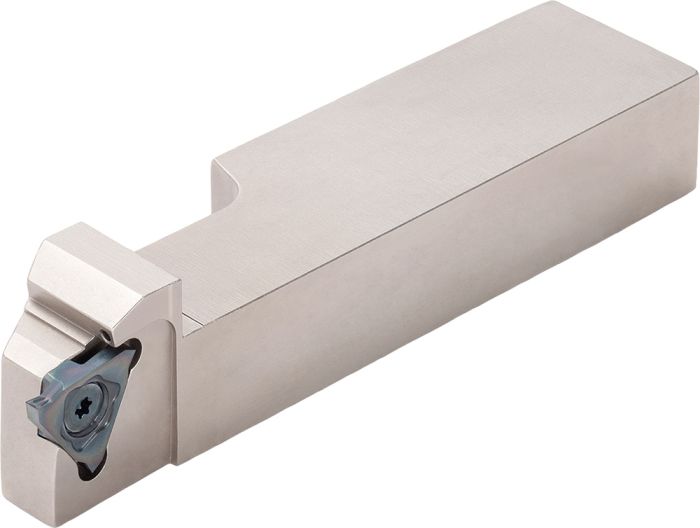

KGBFR1625H-16FJCT
SKU
THC14778
Product Overview
KGBF-F-JCT
Price Hidden
In stock
IN STOCK
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 03.00 |
| [CW MAX] Edge Tolerance | 3 |
| [B] Shank Width | 16.00 |
| [HF] Cutting Edge Height | 16.00 |
| [LH] Head Length | 20.00 |
| [LN] Under Neck Length | 40.00 |
| [WF] Cutting Edge Distance | 16.00 |
| [HBH] Head Bottom Offset Height | - |
| [HBL] Head Bottom Offset Length | - |
| [MHD] Mounting Hole Distance | 44.00 |
| [MHD2] Mounting Hole Distance Secondary | 65.00 |
| [LF] Functional Length | 100.00 |
| [H] Shank Height | 16.00 |
| [CW] Cutting Width | 0.25 - 3.00 |
Coolant-Through External Grooving Toolholder
| Weight | 0.236000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 03.00 |
| Cutting Edge Height | 16.00 |
| Head Length | 20.00 |
| Under Neck Length | 40.00 |
| Coolant supply property | No |
| Grooving | External Grooving |
| Head Bottom Offset Height | - |
| Head Bottom Offset Length | - |
| Mounting Hole Distance | 44.00 |
| Mounting Hole Distance Secondary | 65.00 |
| Tool Style | KGBF-F-JCT |
| Cutting Edge Distance | 16.00 |
| Cutting Width Minimum | 0.25 |
| Cutting Width Maximum | 3.00 |
| Insert Mounting Style Code | Screw |
| Functional Length | 100.00 |
| Brand | Kyocera |
| Shank Height | 16.00 |
| Cutting Width | 0.25 - 3.00 |
